Belt fabrication equipment for precision and reliability

Designed and produced internally by Habasit, our fabrication tools ensure effective and reliable belt fabrication. The equipment portfolio reflects deep application know‑how and covers the full spectrum of requirements, from standard workshop fabrication to specialized and on‑site belt preparation and installation.

Product overview

The range includes: cutting tools, punching and skiving devices for precise belt end preparation, hot‑pressing devices and presses for joining, and supporting accessories such as control units and guide rails.

The range includes: cutting tools, punching and skiving devices for precise belt end preparation, hot‑pressing devices and presses for joining, and supporting accessories such as control units and guide rails.

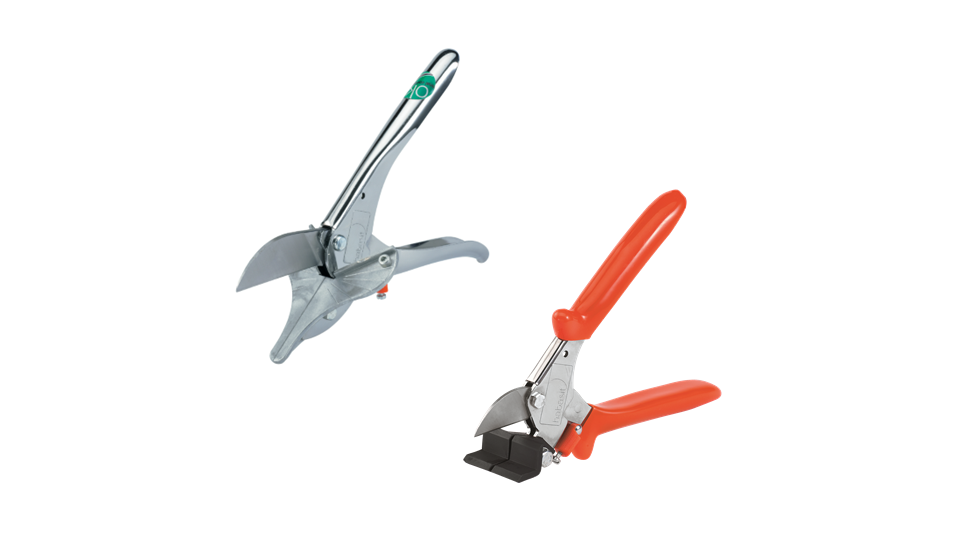

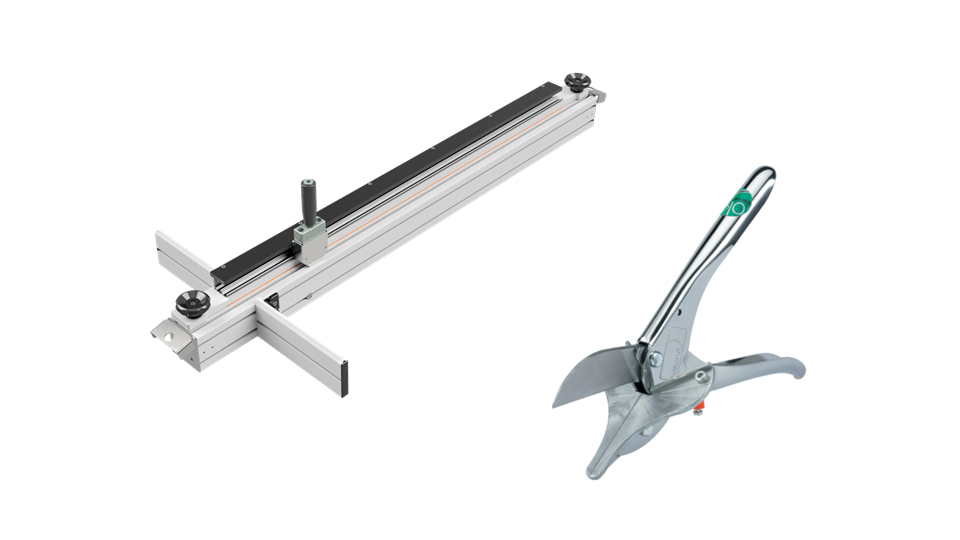

Habasit offers a comprehensive range of cutter tools designed for the manual cutting and preparation of belt ends prior to joining, ensuring accuracy, efficiency, and repeatable results in both workshop and on‑site environments. The portfolio includes easy‑to‑use manual scissors, supporting applications that require Quickmelt joining and portable manual cutting tools suitable for belts up to 1000 or 1600 mm wide.

Key products:

Product	Key features
S-16	Manual scissor for cutting round belts up to 15 mm diameters.
AQ-40	Manual scissors for flat belts up to 40 mm wide and 3 mm thick, with markings on the cutting bed for precise angled cuts.
AQ cross cutting devices	Portable AQ-604 ruler and AQ-603 cross cutter, both designed for Habasit® Cleandrive.
BC cross cutting devices	Multipurpose BC cross cutters for precise 90° cuts. The BC cross cutters are equipped with a bi-directional blade and foldable guides. Safe, lightweight tools for on-site or bench use: BC-1000 (≤ 1000 mm) and BC-1600.

Downloads:

→ Habasit Tools and Hot Presses Catalogue

Cutting devices

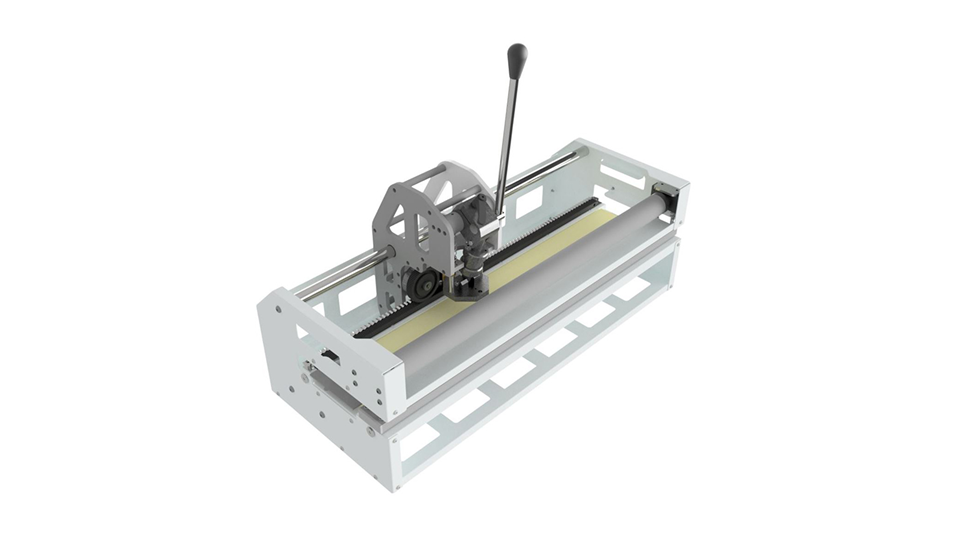

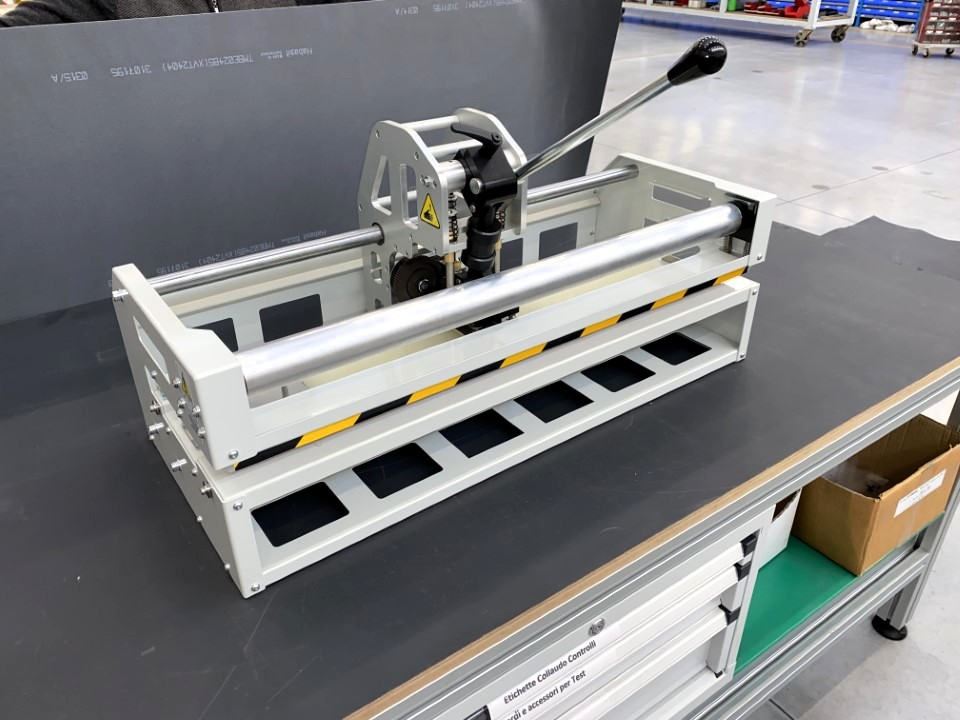

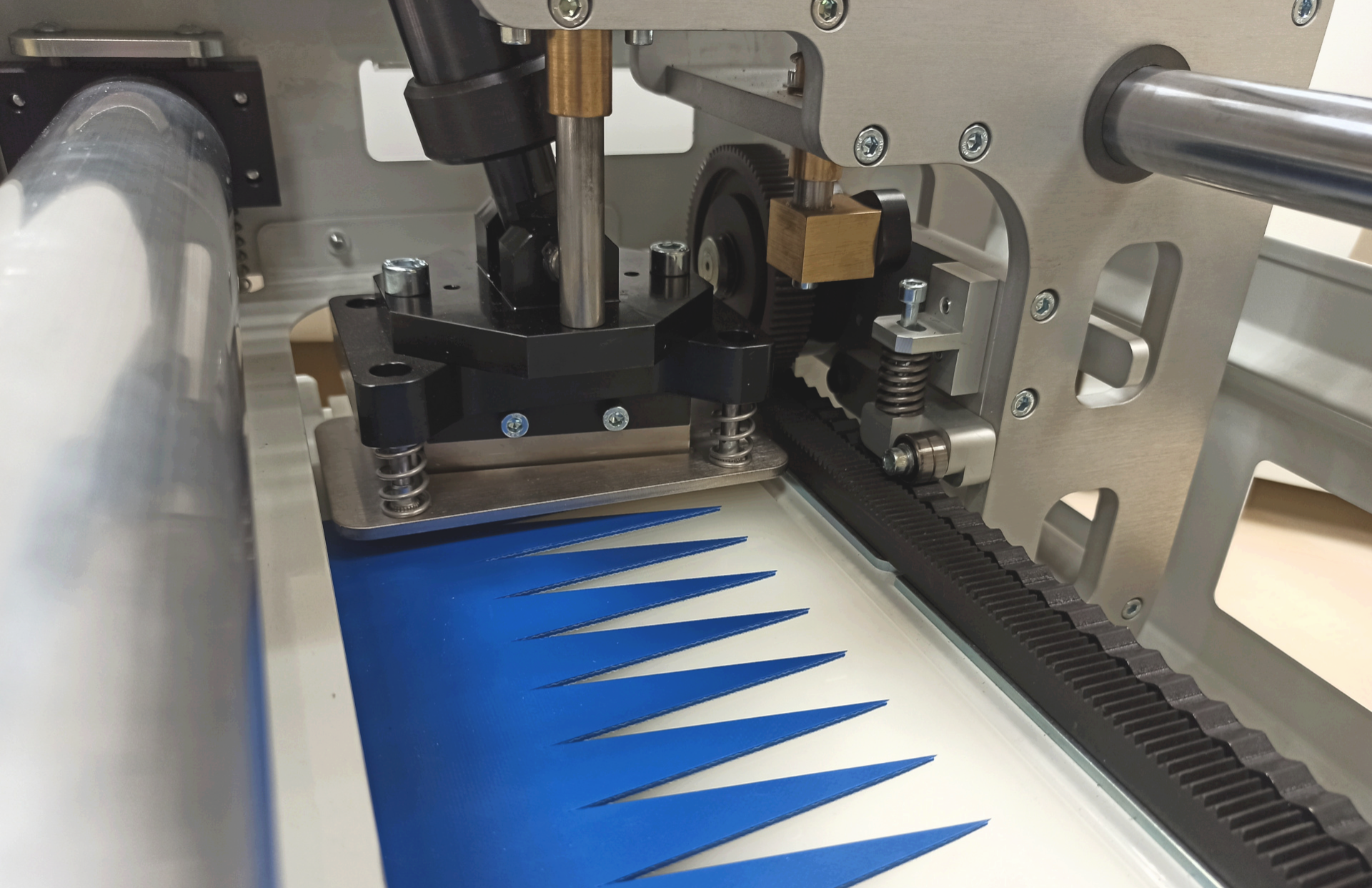

Habasit Flexproof punching devices are designed to ensure precise and repeatable belt end preparation, forming the basis for reliable and high‑quality Flexproof and Step‑Flexproof joints. The portfolio ranges from simple, manual tool kits such as the A‑4201, to advanced devices for higher productivity and wider belts. Various die‑cutting geometries are available to match different belt types and applications.

Key products:

Product	Key features
AFL-601/0 die-cutting device	Designed for Flexproof and Step‑Flexproof belt preparation, the tool processes belts up to 10 mm thick and 600 mm wide. Equipped with a 20 × 80 die‑cutting head, with additional geometries available on request. Ideal for on‑site use.
AFH‑61	Designed for spindle and machine tapes up to 60 mm wide.
AF-42	Designed for power transmission belts up to 40 mm width and equipped for 10/120 Flexproof finger geometry.

Downloads:

→ Habasit Tools and Hot Presses Catalogue

Punching devices

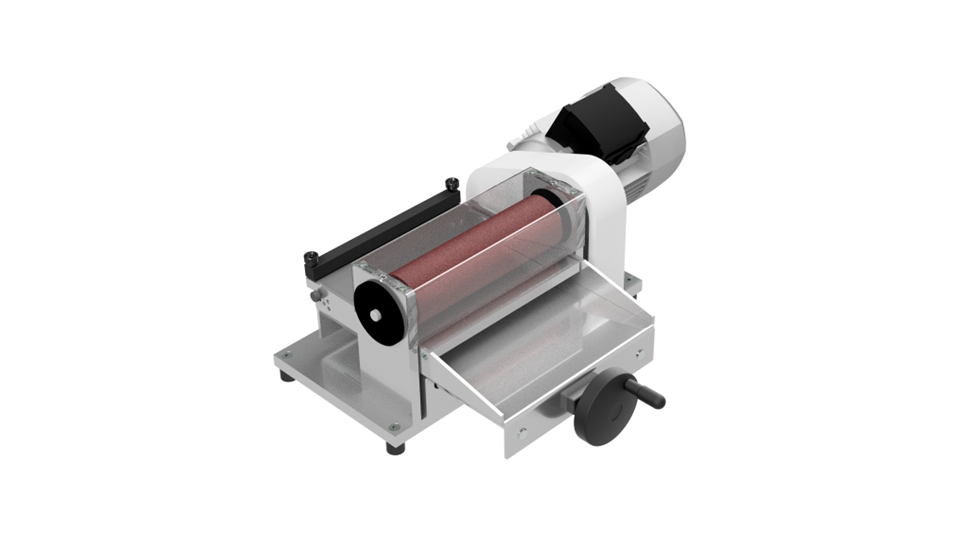

Habasit skiving devices are designed to precisely prepare belt surfaces for Thermofix joining of non‑thermoplastic belts, ensuring optimal bonding conditions and reliable joint quality. The range supports accurate material removal, controlled surface finishing, and consistent preparation across different belt types, widths, and thicknesses, both in the workshop and on site.

The portfolio covers solutions from the AT‑60 manual skiving tool, based on a grinding disc for belts up to 60 mm wide and 2 mm thick, to more automated devices such as the A‑600 belt‑sander‑based unit for belts up to 600 mm wide and 6 mm thick.

Key products:

Product	Key features
AT-201 skiving devices	Skiving tool, based on grinding roller, for belts up to 200 mm wide and 7 mm thick. The tool is equipped with a high-torque motor and is suitable for preparing machine tapes and power transmission belts.

Downloads:

→ Habasit Tools and Hot Presses Catalogue

Skiving devices

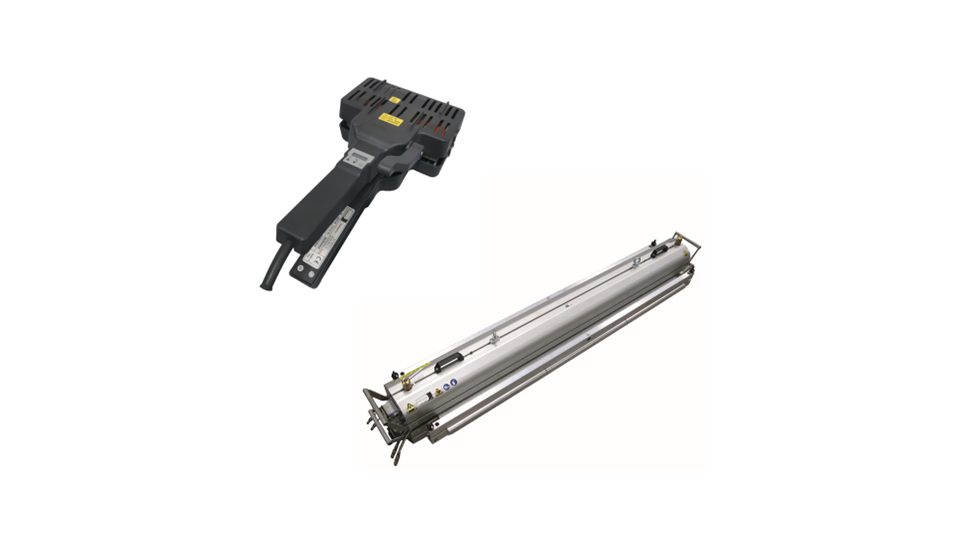

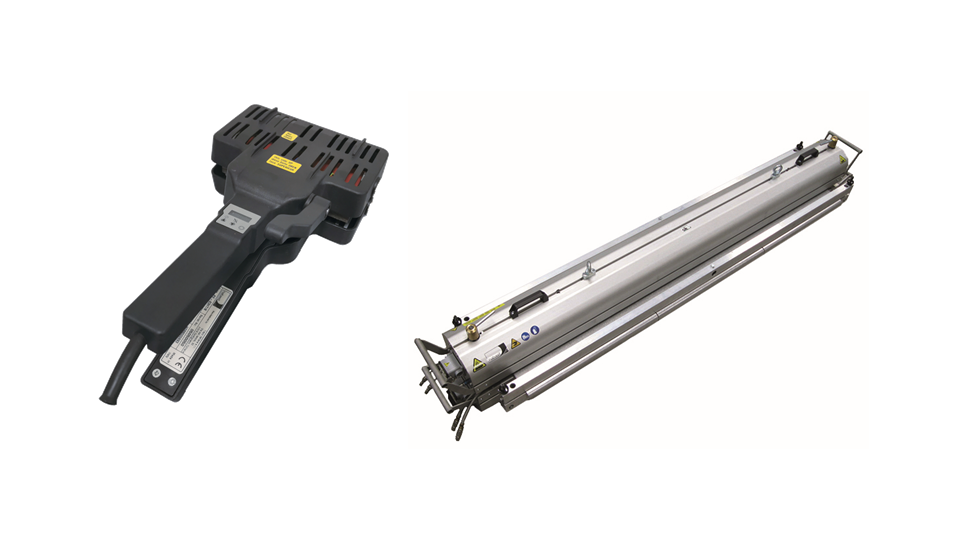

Habasit offers a comprehensive range of joining devices and presses designed to deliver outstanding joining quality, reliability, and flexibility for fabric belts. The portfolio includes portable hot‑pressing tools as well as dedicated and multipurpose press series, covering a wide variety of belt types, dimensions, and production needs, both on‑site and in the workshop.

All Habasit standard joining can be performed using this range, in full compliance with Habasit quality standards. The portfolio combines application‑specific solutions, optimized for individual joining methods, with multifunctional devices capable of performing multiple techniques with consistently high results. Each press series is available in multiple sizes and as mobile or stationary kits, integrating the press body, control unit, and required accessories.

Key products:

Product	Key features
PQ & W Quickmelt joining devices PF Flexproof joining devices PT & PTL Thermofix joining devices	Portable hot-pressing tools specific for Quickmelt, Flexproof or Thermofix joining methods.
PML Compact Air-cooled presses	Portable multipurpose hot-pressing series ideal for on-site joining of fabric belts and, in combination with proper joining plate, even timing belts.
PM-09A Multipurpose Air-cooled presses	Hot-pressing series ideal for on-site joining of conveyor belts.
PM-09W Multipurpose Water-cooled presses PM-04 Extra large Water-cooled presses	Hot-pressing series designed for joining conveyor belts up to 10 mm thick, with excellent joining performance for both stationary use for mass production and portable for fitting on-site.
PM-HD High duty belts Water-cooled presses	For heavy duty belts up to 12 mm thick.
PQ-03 presses	Specifically developed for Cleandrive monolithic belts.

Downloads:

→ Habasit Tools and Hot Presses Catalogue

Joining devices and presses
